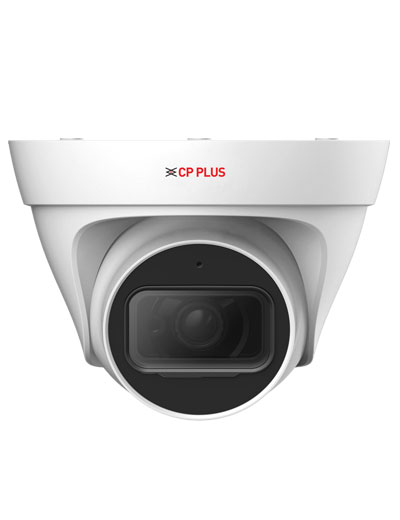

CP PLUS 4MP WDR IR Network Dome Camera (CP-UNC-DA41PL3C-D) – 30Mtr

Description

The CP PLUS CP-UNC-DA41PL3C-D is an advanced network dome camera featuring built-in audio capabilities and smart compression technology. This versatile camera is designed for small and medium-sized applications, combining high-resolution imaging with cost-effective performance.

Key Features:

1. Image Sensor & Resolution

• 1/3″ 4MP Progressive scan CMOS sensor
• Maximum resolution options:
  • 4MP (2560 × 1440) @25/30fps
  • 4MP (2688 × 1520) @20fps
• Minimum illumination: [email protected]
• S/N Ratio: >56dB
• Memory: 128MB RAM & 128MB ROM

2. Optical Specifications

• 3.6mm fixed-focal lens (2.8mm optional)
• Maximum aperture: F2.0
• Fixed iris type
• M12 mount type
• Viewing angles:
  • 3.6mm lens: 81° (Horizontal) × 44° (Vertical) × 95° (Diagonal)
  • 2.8mm lens: 93° (Horizontal) × 53° (Vertical) × 111° (Diagonal)

3. Audio & Video Features

• Built-in microphone
• Audio compression: G.711A, G.711Mu, G.726
• Smart compression: H.265+/H.265/Smart H.264+/H.264
• Video bit rates:
  • H.265: 12 Kbps–6144 Kbps
  • H.264: 32 Kbps–6144 Kbps
• Image rotation: 0°/90°/180°/270°

4. Intelligent Features

• 120dB Wide Dynamic Range (WDR)
• True Day/Night with ICR
• 3D-DNR (Digital Noise Reduction)
• ROI with 4 configurable areas
• Motion detection with 4 areas
• Privacy masking (4 areas)
• BLC/HLC support

5. Network & Security Features

• Comprehensive protocol support including ONVIF (Profile S/G/T)
• Advanced cyber security features:
  • Video/firmware/configuration encryption
  • IP/MAC filtering
  • X.509 certification
  • HTTPS and 802.1x support
  • Trusted boot/execution/upgrade
• Supports up to 20 users

6. Storage & Management

• Edge storage options: FTP, NAS, SFTP
• SDK and API support
• Multiple browser support: IE, Chrome, Firefox

7. IR Illumination

• 30-meter IR range
• Single high-efficiency IR LED

8. Environmental & Physical Specifications

• IP67 weatherproof rating
• Operating temperature: -40°C to +55°C
• Storage temperature: -40°C to +60°C
• Humidity tolerance: ≤95%
• Power consumption: <5.1W
• Dimensions: 85.5 mm × Φ109 mm
• Weight: 0.25kg
• Construction: Inner core (metal + plastic), cover (plastic)

Software Support:

• Mobile applications: iCMOB, gCMOB
• CMS Software: KVMS Pro
• Compatible with iPhone, iPad, and Android devices

Power Options:

• Dual power options:
  • DC12V
  • PoE (IEEE 802.3af)

Event Triggers:

• Network disconnection
• IP conflict
• Motion detection
• Video tampering
• Illegal access
• Voltage detection
• Security exception

Optional Accessories:

• Pole Mount (CP-UA-B2P)

This camera is particularly suited for applications requiring both video and audio surveillance in small to medium-sized environments. The combination of 4MP resolution, 120dB WDR, built-in microphone, and comprehensive security features makes it an ideal choice for retail stores, residences, and small business establishments where detailed surveillance with audio capabilities is essential.
